Internal Hardwood FD60 Fire Door Lining
- Application: Internal
- Fire Rating: FD60 Compliant
About this frame

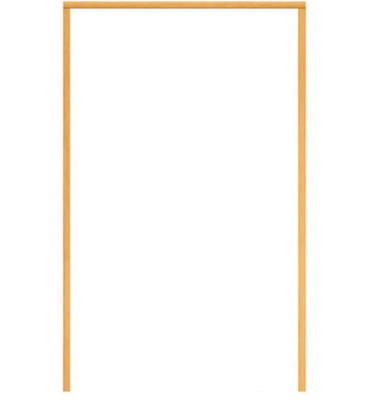

The Internal Hardwood FD60 Fire Door Lining is designed for use with FD60-rated doors up to 926mm wide and 54mm thick and can easily be cut down to suit narrower doors.

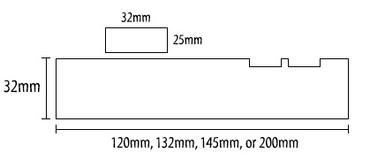

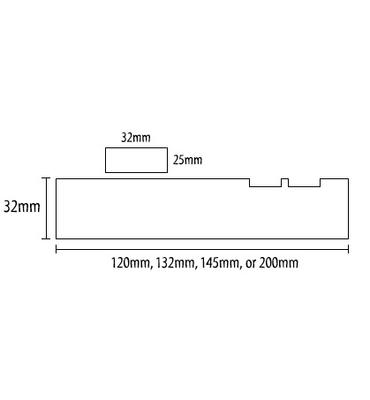

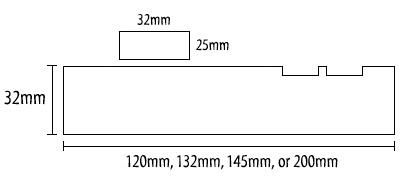

This FD60 frame is supplied trenched out to accept 15mm x 4mm self-adhesive intumescent strips (not included).
This frame is available in options to suit different wall thicknesses.
- 1 x head to suit a door up to 926mm wide.
- 2 x jambs (legs) to suit a door up to 2040mm high.
- Door stops to suit a door up to 926mm and 2040mm high.
This frame is only suitable for FD60-rated applications. We would always advise checking your fire door certification to ensure this frame meets the minimum requirements set out by the certification document. If you are at all unsure about the suitability of your door and frame combination, we’d also recommend speaking to a building inspector/your local planning office.
Our frames have been manufactured to meet the following requirements:
Minimum Density of 650kg/m3.
Often the fire door certification would specify the specification of the frame required to ensure compliance.
These casings are supplied unfinished meaning they can be finished to match any décor. They can be stained or painted to your preference.
Things we thought you should know!
Please note: these frames are supplied as a kit, assembly is required on-site.
Intumescent strips are not included.
