Pre-Hung External Door Blank Doorset
- Material: Hardwood
- Application: External
- Finish Type: Ready to finish
- Core: Solid Core
About this Doorset

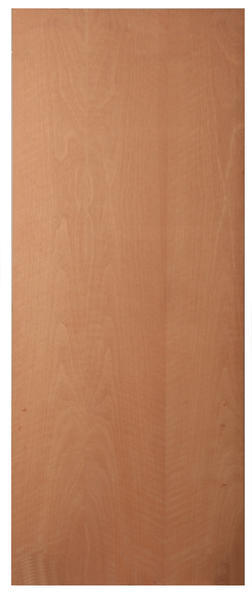

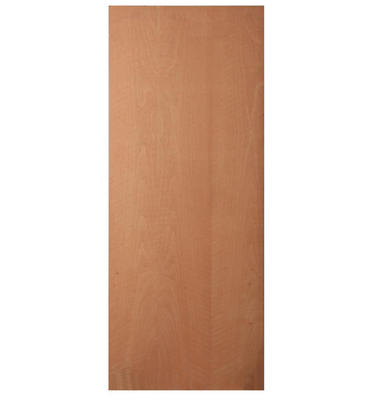

The Pre-Hung External Door Blank Doorset is a hardwood-faced 44mm solid core door.
These doors have been engineered to be lightweight for transportation and health and safety reasons.
Whilst being lighter than older specifications, this doesn't impact quality, nor change the fact that this is a strong, secure, solid timber core door.
Why choose a Pre-Hung Doorset?
Save hours of joinery time with our pre-hung doorsets, featuring factory-manufactured cut-outs for locks, handles, hinges and letter plates (optional); providing a hassle-free way to install an external door.
Customise your Doorset how you want it!
As we process your order, we’ll send you a form to select your hardware colour (Chrome, Brass (with chrome hinges), or Black (with chrome hinges)), hinge position (left or right side) and opening preferences(inward or outward opening) allowing you to create the perfect entryway for your home. Be sure to look out for the form in your email inbox.
Each door set comes complete with a door, matching frame, 3 x security hinges, door furniture, a threshold and rain deflector.
The door and frame are fully assembled, all you need to do is secure the frame in your opening and screw the handles on!
For help in choosing your ideal door set or for more information, please use the "Choosing Your Doorset" tab.
Things we thought you may need to know!
Please Note: These doorsets will create a value of insulation, but are not supplied, nor rated as "Part L" compliant. Where possible an indicative U-Value is supplied as a guide only.
As these doorsets are manufactured to your requirements, lead times for manufacture can vary, please contact us for more information.
Choosing your doorset
Our doorsets are the perfect choice for those looking to get a head start with their door installation saving valuable joinery time and making the job more convenient.
Design your perfect entryway, there are a number of different customisation options to configure for your doorset.
You can pick your:
- Door Size

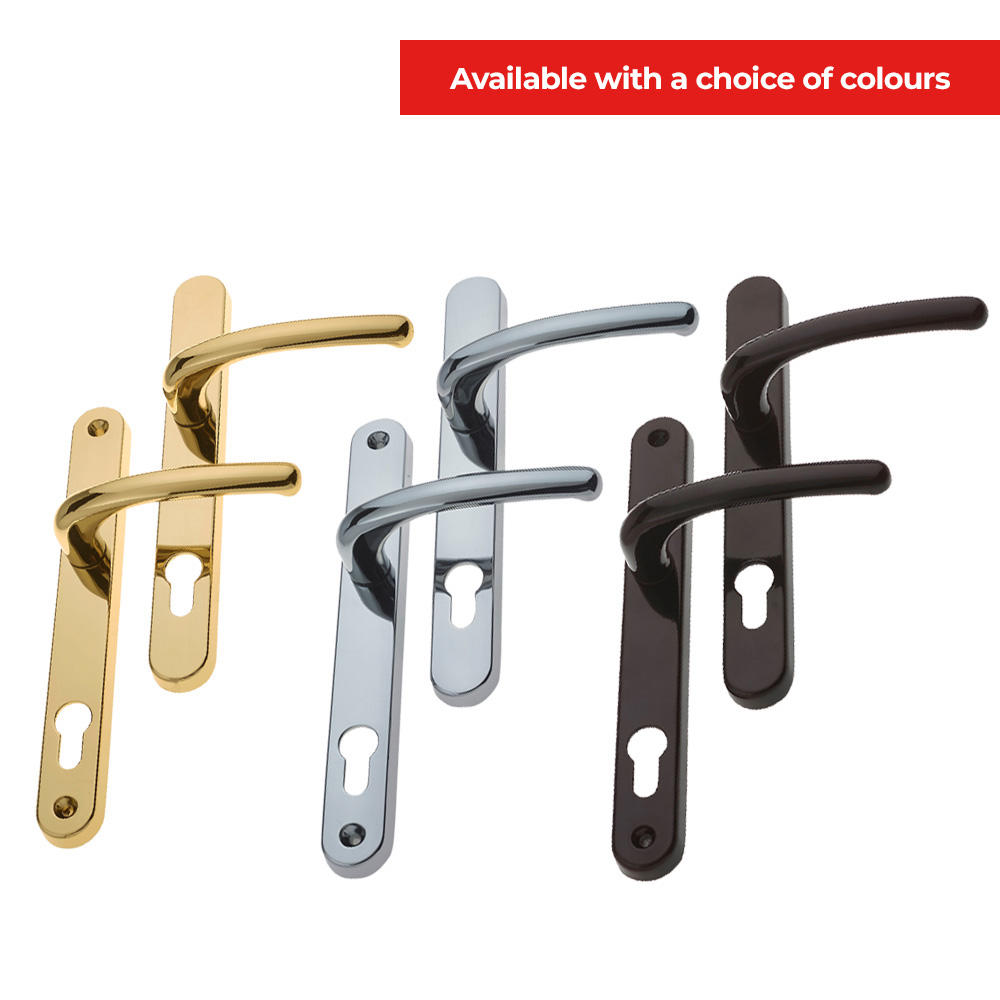

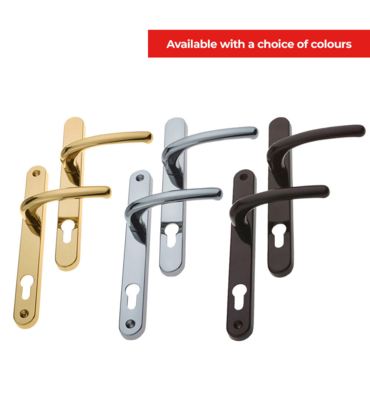

- Ironmongery Colour (Chrome, Brass (with chrome hinges), or Black (with chrome hinges))
- Hinge Position (Left or Right Side)
- Opening (Inwards or Outwards)
- Optional letter plate.
Once you have placed your order, we’ll email you a form to design your doorset, your way.
1 - Choosing Your Size
It is important that you select a door set to correctly fit the opening you have, if your opening isn’t square you may have to make some small onsite adjustments if you’re unsure we’d always recommend consulting a professional.
To help you decide which size door best suits your opening please use the following table, taking care to double-check the overall dimensions and the required brickwork dimensions against the opening that you have.
|Overall External Door & Frame Dimensions
|Required Brickwork Dimensions
|30" x 78"
762mm x 1981mm
|850mm x 2067mm
|855mm x 2072mm
|32" x 80"
813mm x 2032mm
|901mm x 2118mm
|906mm x 2123mm
|33" x 78"
838mm x 1981mm
|926mm x 2067mm
|931mm x 2072mm
|34" x 82" *
864mm x 2082mm
|952mm x 2168mm
|957mm x 2173mm
|36" x 78" *
915mm x 1981mm
|1003mm x 2067mm
|1008mm x 2072mm
|36" x 84" *
915mm x 2134mm
|1003mm x 2220mm
|1008mm x 2225mm
* Only available in selected door options
Once you've identified the Door Size you require, please select it from the "Size:" dropdown.
As we process your order, we’ll send you a form to select your hardware colour (black, chrome or brass), hinge position (left or right side) and opening preferences(inward or outward opening) allowing you to create the perfect entryway for your home. Be sure to look out for the form in your email inbox, we can only commence manufacture once we've heard back regarding your preferences.
We understand that ordering a door set can be a confusing task, so hopefully, this guide will help you through the process. As ever, if you need any help or would like to talk anything through please feel free to contact us.
Your doorset will be hung in the frame using three 4" Lift off security hinges.
Offering easy and quick door removal, these hinges will give you the flexibility in lifting off the door for maintenance or easier access through a door opening.
An integral security bolt offers security from attempted unauthorised entry via cutting or removing hinge pins. The "dog" bolt reinforces the door and prevents the door from being lifted or moved off the hinges when the door is closed.
Manufactured in the United Kingdom from heavy gauge steel, these hinges are designed for long-life performance under arduous conditions. These hinges have been endurance and corrosion tested.
3 Way Multi-Point Vectis Locking System
This doorset is supplied complete with a professionally fitted Vectis Multipoint lock, combining the security of a traditional 5-lever mortice lock with the added benefits of a hook bolt system.
Having removed the need for a Euro Cylinder, this lock is unique in its field and features an anti-bump security lock barrel.
These locking systems are designed to meet the requirements of PAS 23 and PAS 24 and are licensed by Secured by Design.
Our door sets are normally supplied without the handles attached for easier transportation. The locking system will be pre-fitted and it is therefore just a case of attaching the handles once your doorset is in place.
Macclex 15/2 Inward Cill & Conceal Fix Expelex rain deflector
The doorset will be supplied with a Conceal Fix Expelex rain deflector for double protection against rainwater and draughts. To avoid any sharp edges the guard is supplied with end caps which can be fitted once it has been cut to length.
After finishing the set, this should be fitted in order to protect your doorset from the elements.
On inward opening variants, this features a Macclex 15/2 Inward Cill to the rear and a rubber strip seal on the front and back. This will not be the case with outward opening variants as they only have one strip on the front. This product will help to save energy and therefore save money on your bills. A rear thermal barrier aids in the prevention of condensation. Suitable for moderately exposed locations.
This threshold has curved upstands to facilitate easy access for wheelchairs and prams. Along with being part M and BS8300 Equality act compliant.
Optional letter plate
Should you wish to have a letter plate fitted in the door, this can be done in the bottom or mid-rail depending on the style of door you are choosing.
If selected, this will be fitted and match the choice of hardware finish.
These doorsets are supplied ready to finish to your own tastes, they are able to be stained or painted. We recommend the use of Oil-based finishes.
The correct storage, fitting and finishing of your new door/s are very important factors in getting the best out of your purchase.
Please always avoid the use of water-based finishing products as this may cause the door to bow, warp or delaminate. Using these types of products will invalidate your guarantee.
Before finishing your door, we would always recommend reading our Door Care information which can be viewed by clicking here, along with any additional manufacturer's documentation supplied with the door itself.
These doors are manufactured using laminated veneered lumber (LVL). LVL or more commonly known as “engineered timber” is a modern method of construction that is economical with the use of natural timber resources.
The main parts & rails of the door are usually constructed using solid strips/blocks of timber (some internals may contain a laminated board and/or particleboard), which are then glued and then clamped together.
They are then faced with a veneer and edged with a solid timber “lipping”. The benefits of using engineered construction doors over more traditional methods are that it is far more unlikely to twist or split (we do not get problems with panels splitting) and possibly the most important reason is that it is much more eco-friendly!
