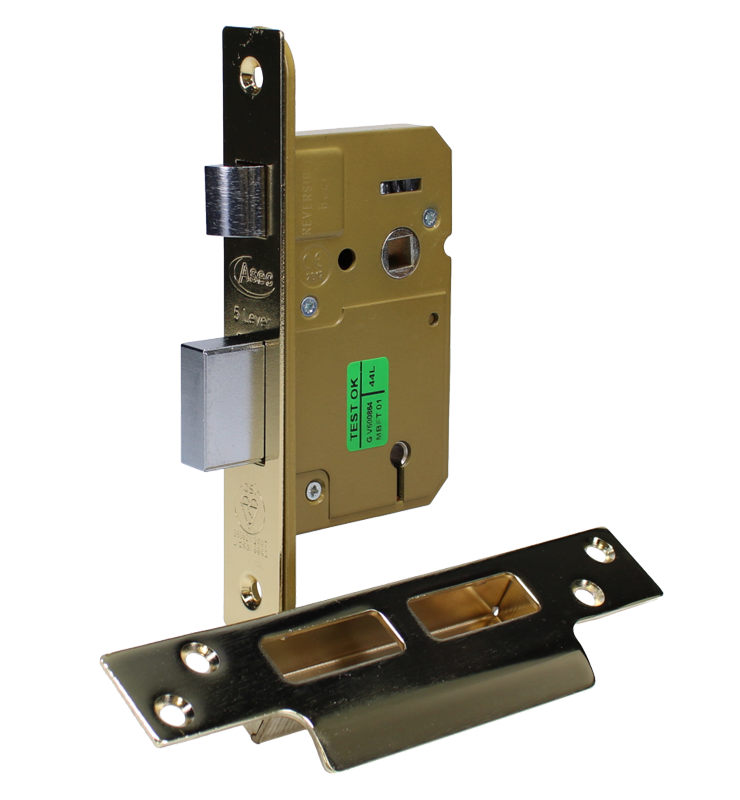

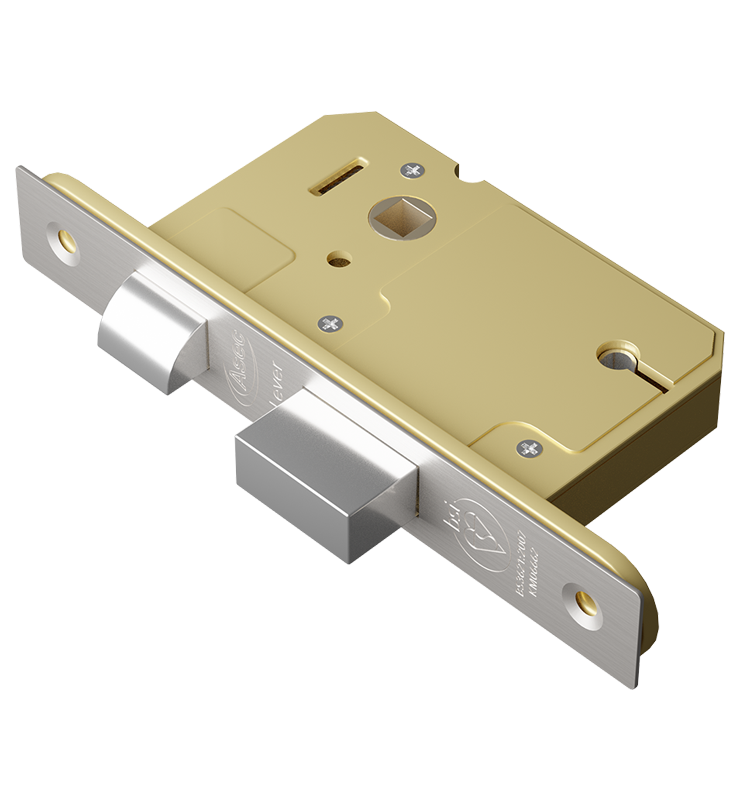

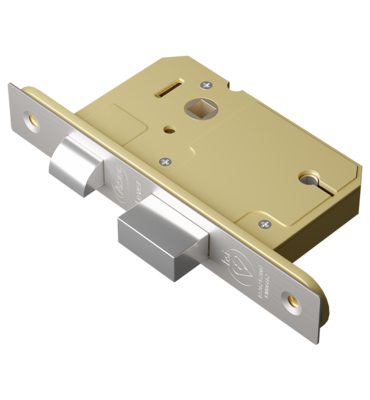

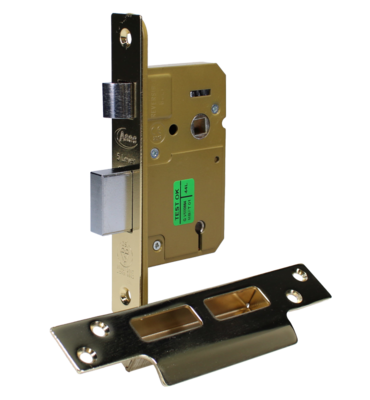

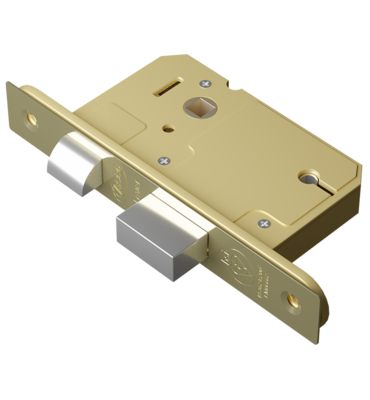

5 Lever British Standard Sashlock

About this Lock

The 5 Lever British Standard Sashlock lock is designed to be used in conjunction with a lever lock handle, this pack comes with all the fittings needed to fit this lock into most external timber doors.

This door lock meets the demands of the insurance companies and the police, complying to British Standard BS3621:2007, being UK Conformity Assesssed (UKCA) and featuring a CE Mark.

This British Standard Sashlock is designed to be economical without compromising on quality and is ideal for use on external doors. It has a steel case fitted with an integral anti-drill plate, a brass sashbolt and deadbolt with 2 hardened steel inserts, has 1,000 variations and comes supplied complete with 2 genuine plated steel keys by default. BS3621:2007 compliance ensures that it is insurance and police approved and has a 30 minute fire rating (EN12209) assuming that it is fitted with the correct intumescent strips.

With a 10 year manufacturers guarantee with ASEC, these locks continue to be a best seller.

Sizing

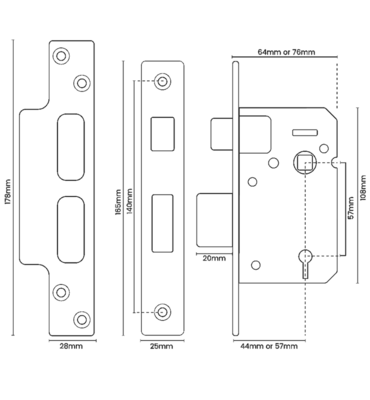

Check out the sizing diagram in the image gallery above (measurements in mm).

64mm Lock Size:
Case Depth: 64mm
Case Height: 108mm
Centres: 57mm
Bolt Throw: 20mm
Forend Length: 165mm
Forend Width: 25mm

76mm Lock Size:
Case Depth: 76mm
Case Height: 108mm
Centres: 57mm
Bolt Throw: 20mm
Forend Length: 165mm
Forend Width: 25mm

Things we thought you may need to know!

Suitable for external doors.

This door lock can be supplied as "keyed alike" either with quantities of this lock, or with a complementary Deadlock, please contact us for more detail.

Orders for multiple locks will be supplied "keyed to differ" by default.
